ETG Series Nozzle Type Vacuum Sealer With Gas Purging

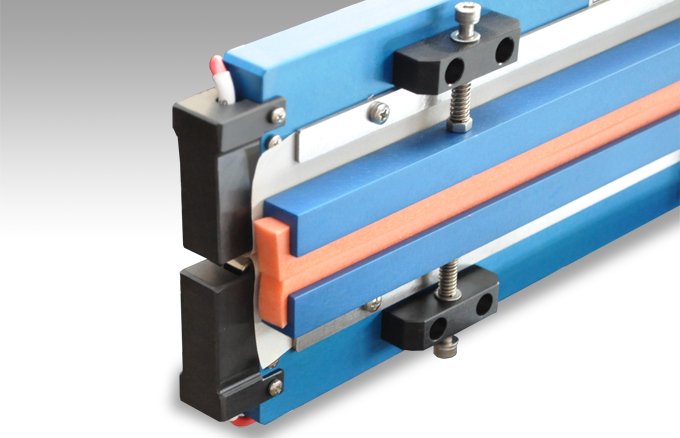

Bi-Active Impulse Sealing System

Various Vacuum Sealed Sample

Tape and Reel & IC Tray Vacuum Sealed Sample

Wafer Shipper Box in Nylon/LDPE Pouch Vacuum Sealed Sample

Wafer Shipper Box in Moisture Barrier Pouch Vacuum Sealed Sample

Wafer Shipper Container Vacuum Sealed Sample

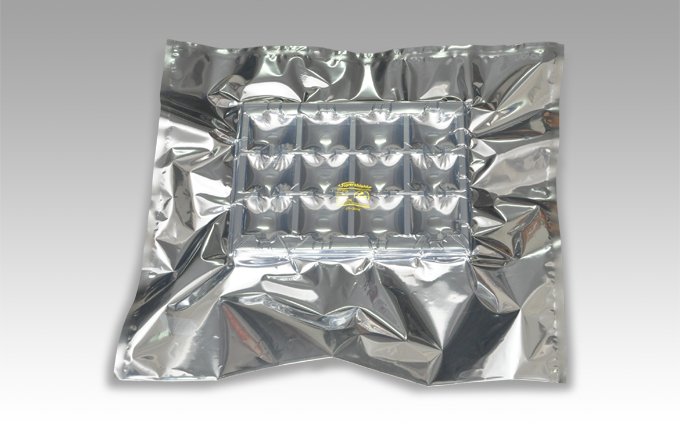

Semiconductor Vacuum Forming Tray Vacuum Sealed Sample

Stack of Tape Reels Vacuum Sealed Sample

ETG Series

ETG series stainless steel vacuum sealer with gas purging is engineered for heavy duty usage. It's control system is powered by PLC controller and color touchscreen (HMI) for precise settings and user-friendly operations. The entire body is constructed with stainless steel to suite semiconductor, medical cleanroom standard and food industry requirements. Twin nozzles and high capacity vacuum ejector pump create high flow of vacuum suction. The Bi-Active impulse sealing system (top & bottom heating) seals all popular moisture barrier bag materials and anti-static pouches from 30” to 40” (bag opening length).

Download PDF

Features
Technical Specifications
Optional
Video

• Compatible for cleanroom application
• Stainless Steel Chassis
• High flow stainless steel retractable twin nozzles
• Twin nozzles with changeable pitch to pitch distance
• Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
• Object / Finger anti-pinch safety system
• Built-in emergency stop push button
• Easy set-up requires only compressed air, gas, and standard electrical outlet
• PLC Control & Touch Screen (HMI) system
• 10 programmable memory for vacuum time, gas time, seal time and cool time settings
• Password protection for setup page
• 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac & Seal Only
• Sealing only mode with nozzle extend
• Packing counter for production monitoring
• Visible and audible alarm
• Vacuum gauge
• High Performance Bi-Active impulse sealing system (top & bottom heating type)
• Electronic foot pedal switch activated

Model:	ETG-30	ETG-32
Power:	Single Phase AC 230V, 50Hz
Air Requirement:	87PSI @ 8.5m3/H
Gas Purging:	Built-in Gas Purging Function, Nitrogen (N2), Carbon Dioxide (CO2), Argon (Ar)
Dimension:	(L) 30.5" x (W) 20" x (H) 13.5"	(L) 32.5" x (W) 20" x (H) 13.5"
Seal Dimension:	(L) 30" x (W) 8mm	(L) 32" x (W) 8mm
Operation Mode:	5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac & Seal Only
Vacuum:	Flow: 21m3/H, Pressure: -88kPA (Max), Vacuum Ejector Pump

Model:	ETG-36	ETG-40
Power:	Single Phase AC 230V, 50Hz
Air Requirement:	87PSI @ 8.5m3/H
Gas Purging:	Built-in Gas Purging Function, Nitrogen (N2), Carbon Dioxide (CO2), Argon (Ar)
Dimension:	(L) 35.5" x (W) 20" x (H) 13.5"	(L) 40.5" x (W) 20" x (H) 13.5"
Seal Dimension:	(L) 36" x (W) 8mm	(L) 40" x (W) 8mm
Operation Mode:	5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac & Seal Only
Vacuum:	Flow: 21m3/H, Pressure: -88kPA (Max), Vacuum Ejector Pump

The following optional accessories are available for ETG series nozzle type vacuum sealer.

- Stainless Steel Product Support Platform

- Vacuum Filter

- Nozzle Length Extension
- Vertical Stand

- Other Sealing Width (10mm)
- Digital Pressure Gauge

- Vacuum Pressure Control Option
- Validation for Vacuum Pressure and Sealing Temperature
- Other Voltage Configuration
