Discover Series Nozzle Type Vacuum Sealer

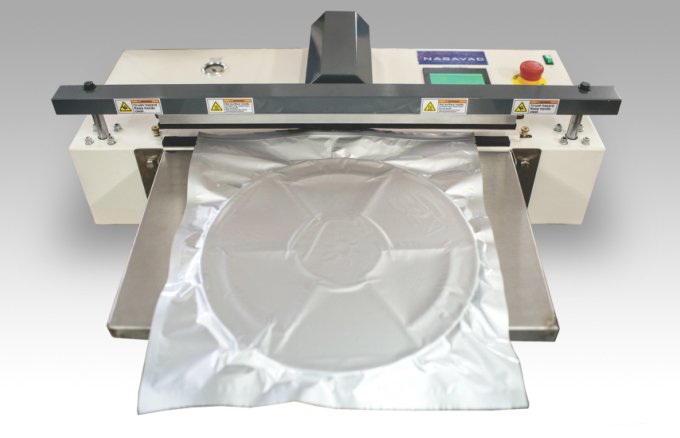

With Optional Stainless Steel Working Platform

High Flow Stainless Steel Vacuum Nozzle

Vacuum Function

Gas Purging Function

Various Vacuum Sealed Sample

Tape and Reel & IC Tray Vacuum Sealed Sample

Gloves Vacuum Sealed Sample

Discover Series

Discover series nozzle type vacuum sealer is a total solution for vacuum packaging applications. It can handle sealing, vacuum sealing (V models) and modified atmosphere packaging (VG models). The Discover series is easy to operate and practically maintenance free. It seals all popular moisture barrier bag materials and anti-static pouches from 20” to 30” (bag opening length).

Download PDF

Features
Technical Specifications
Optional
Video

• Compatible for clean room application
• High flow stainless steel retractable nozzle
• Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
• Object / Finger anti-pinch safety system
• Built-in emergency stop push button
• Easy set-up requires only compressed air, standard electrical outlet and gas (for VG models)
• PLC Control & Touch Screen (HMI) system
• 10 programmable memory for vacuum time, gas time, heat time and cool time settings
• Password protection for setup page
• Packing counter for production monitoring
• Visible and audible alarm
• Vacuum gauge
• High Performance impulse sealing system
• Electronic foot pedal switch activated

Model:	V-200	V-250	V-300
Power:	Single Phase AC 230V, 50Hz
Air Requirement:	87PSI @ 8.5m3/H
Machine Dimension:	(L) 37" x (W) 13" x (H) 9"	(L) 42" x (W) 13" x (H) 9"	(L) 47" x (W) 13" x (H) 9"
Seal Dimension:	(L) 20" x (W) 6mm	(L) 25" x (W) 6mm	(L) 30" x (W) 6mm
Operation Mode:	3 Operation Modes: Auto Timer Vacuum, Manual Vacuum, Seal Only
Vacuum:	Flow: 5m3/H, Pressure: -88kPA (Max), Vacuum Ejector Pump

Model:	VG-200	VG-250	VG-300
Power:	Single Phase AC 230V, 50Hz
Air Requirement:	87PSI @ 8.5m3/H
Gas Purging:	Built-in Gas Purging Function, Nitrogen (N₂), Carbon Dioxide (CO₂), Argon (Ar)
Machine Dimension:	(L) 37" x (W) 13" x (H) 9"	(L) 42" x (W) 13" x (H) 9"	(L) 47" x (W) 13" x (H) 9"
Seal Dimension:	(L) 20" x (W) 6mm	(L) 25" x (W) 6mm	(L) 30" x (W) 6mm
Operation Mode:	5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac,Gas, Gas-Vac-Gas-Vac, Seal Only
Vacuum:	Flow: 5m3/H, Pressure: -88kPA (Max), Vacuum Ejector Pump

The following optional accessories are available for Discover series nozzle type vacuum sealer.

- Fully Stainless Steel Chassis
- Stainless Steel Product Support Platform

- Vacuum Filter

- Nozzle Length Extension

- Vertical Stand
- Other Sealing Width (8mm, 10mm)
- Other Voltage Configuration
