Heating Elements
Accesories Variety of Heating Elements

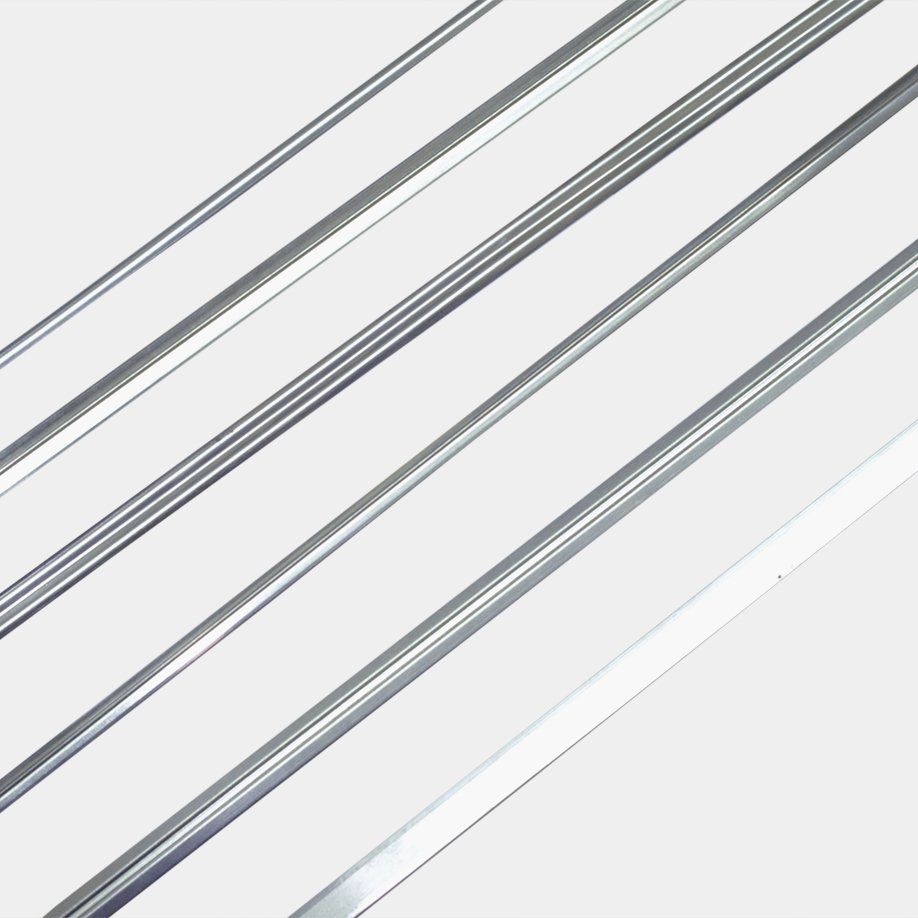

Variety of Heating Elements

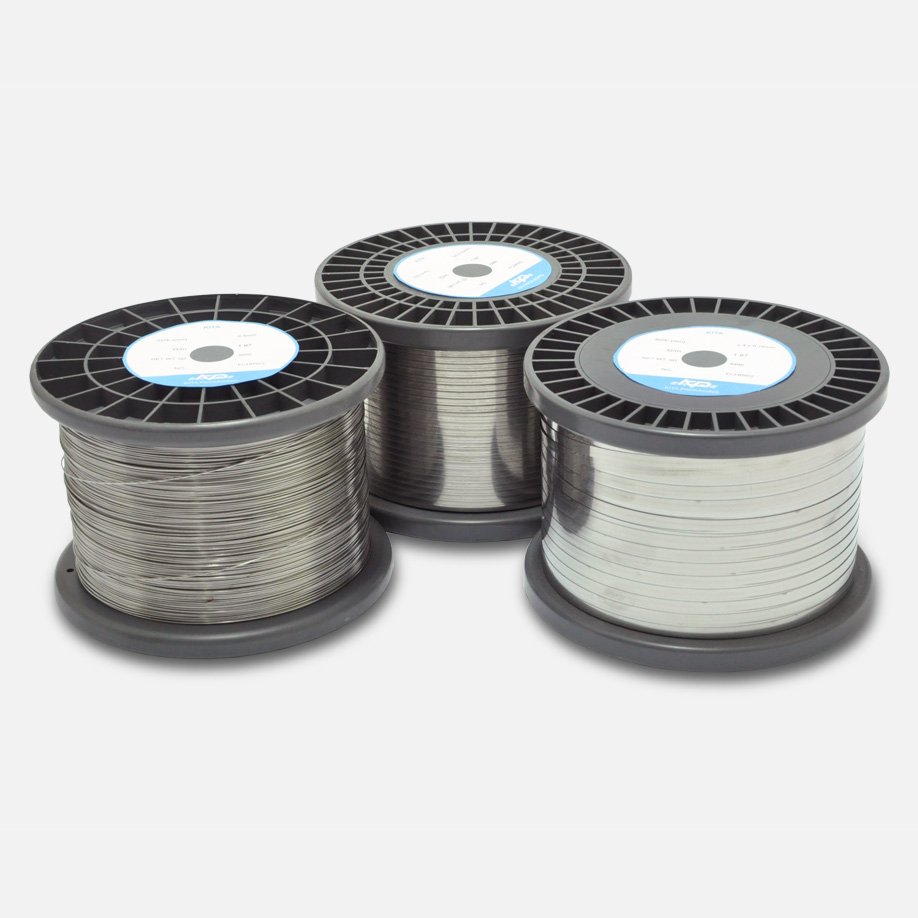

Heating elements are part of impulse sealing system components for heat sealing plastic pouches and films. Our flat heating elements are of excellent quality and are mainly manufactured from resistance wire with a Nickel-Chrome Alloy. Kita Packaging supplies variety of heating elements for your seal machine in any type and form, with copper plated or with end connectors.The heating elements are manufactured with a low ohm resistance for electronically controlled seal equipment.
 |
 |
 |
 |
 |
 |
 |
- For Heat-Sealing
- For Heat-Strong Sealing
- For Heat-Cutting
| Type: | Descriptions | |
|---|---|---|
 |
Flat Heating Element | |
| Width: | 1.6mm to 10mm | |
| Thickness: | 0.10 to 0.30mm | |
| Application: | For normal heat sealing Possible weakening of the heat seal seam edge with zipper failure. |
|
 |
Tapered Heating Element | |
| Width: | 2.0mm to 10mm | |
| Thickness: | 0.10 to 0.30mm | |
| Application: | For normal heat sealing Minimal weakening of the heat seal seam edge. |
|
 |
Curved Heating Element | |
| Width: | 2.0mm to 10mm | |
| Thickness: | 0.10 to 0.25mm | |
| Application: | For vacuum heat sealing Minimal weakening of the heat seal seam edge. |
|
 |
Double Beam Heating Element | |
| Width: | 4, 6, 8, 10mm | |
| Thickness: | 0.15 to 0.25mm | |
| Application: | For vacuum heat sealing. Double seal, ideal for liquids. |
|
 |
Single Beaded Heating Element | |
| Width: | 4, 6, 8, 10mm | |
| Thickness: | 0.15 to 0.25mm | |
| Application: | For cutting sealing. Soft cutting sealing. |
|
 |
T-Profile Heating Element | |
| Width: | 2.8, 4, 6mm | |
| Thickness: | 0.25mm | |
| Application: | For cutting sealing. Hard cutting sealing. |
|
 |
Round Heating Element | |
| Diameter: | 0.3mm to 1.5mm | |
| Application: | For cutting sealing. Hard cutting sealing. (Narrow seal) |
|
