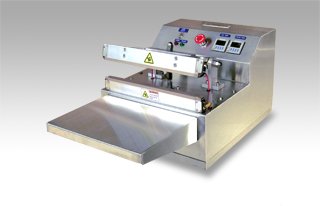

SPB Series Bi-Active Table Top Impulse Sealer

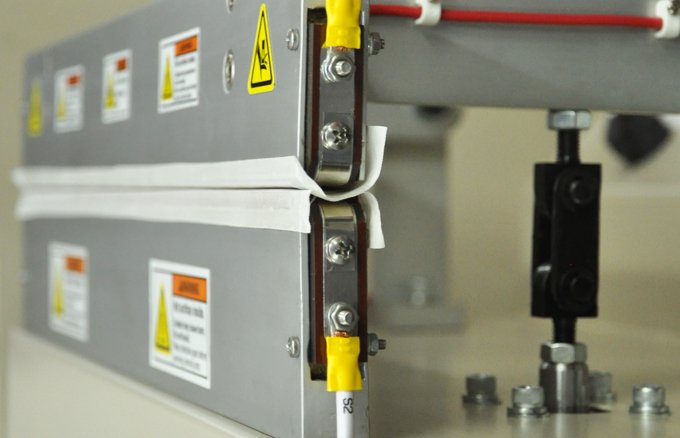

Bi-Active Seal Jaws

Optional Stainless Steel Chassis and Digital Timers

Moisture Barrier Bag

Electrostatic Sensitive Device (ESD) Bag

SPB Series

SPB Series Bi-Active Table Top Impulse Sealer is pneumatically operated and available from 400mm, to 1000mm seal length. The Bi-Active (Top & Bottom Heating) provides sealer with high sealing capacity and closing pressure for thick bags, gusseted bags. A sealing timer and cooling timer ensure precise control over the amount of impulse heat time and dwell time applied to your package. With an outstanding level of heat sealing control system you can have confidence in sealing a wide range of materials from LDPE, HDPE, PP, to laminted film such as PA (Nylon/LDPE), OPP and aluminum film

Download PDF

Features
Technical Specifications
Optional
Video

• Clean room compatible
• Works with all popular microbial & moisture barrier bag materials
• Easy to operate
• Practically maintenance free
• Bi-active jaws (top and bottom heated seal bars)
• Strong pressure seal jaw design
• Foot pedal switch operated
• Adjustable sealing and cooling time
• Easy heating element change-over
• Easy Teflon sheet replacement
• Finger / object anti-pinch safety system
• Suitable for retort pouch heat sealing
• Impulse sealing system

Model:	SPB-400	SPB-600
Power:	Single Phase AC 230V, 50Hz	Single Phase AC 230V, 50Hz
Dimension:	(L) 450mm x (W) 500mm x (H) 400mm	(L) 650mm x (W) 500mm x (H) 400mm
Seal Dimension:	(L) 400mm x (W) 5mm	(L) 600mm x (W) 5mm
Impulse Power:	1200W	1400W
Air Requirement:	Minimum 5 bars (82 PSI)	Minimum 5 bars (82 PSI)

Model:	SPB-800	SPH-1000
Power:	Single Phase AC 230V, 50Hz	Single Phase AC 230V, 50Hz
Dimension:	(L) 850mm x (W) 500mm x (H) 400mm	(L) 1050mm x (W) 500mm x (H) 400mm
Seal Dimension:	(L) 800mm x (W) 5mm	(L) 1000mm x (W) 5mm
Impulse Power:	1600W	1800W
Air Requirement:	Minimum 5 bars (82 PSI)	Minimum 5 bars (82 PSI)

The following optional accessories are available for SPB Series Bi-Active Table Top Impulse Sealer.

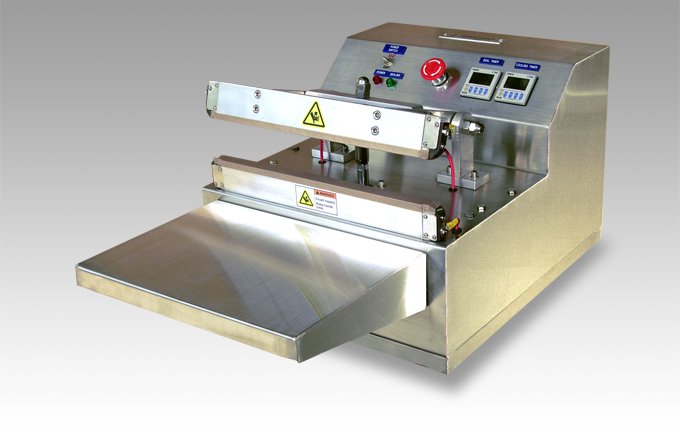

- Fully Stainless Steel Chassis

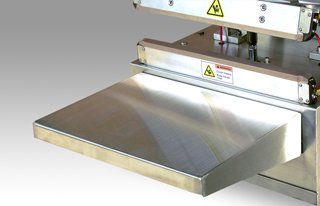

- Stainless Steel Product Support Platform

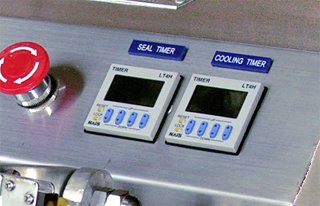

- Digital Timers

- Other Sealing Width (8mm or 10mm)
- Other Voltage Configuration
